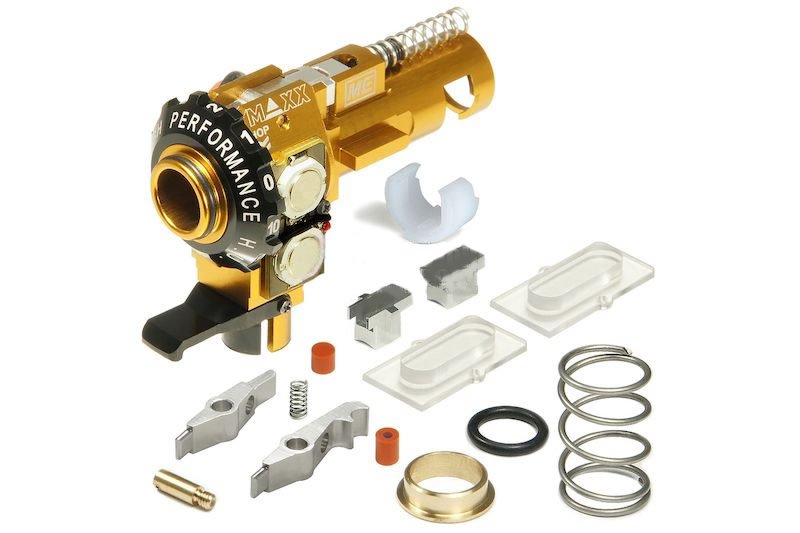

Maxx CNC Aluminum Hopup Chamber ME – PRO with LED

Product Description*THIS UNIT IS NOT COMPATIBLE WITH AEGS THAT HAVE ELECTRONIC TRIGGERS LIKE ARES, G&G, GATE, ASCU ETC. IT WILL WORK FINE WITH MICROMOSFETS OR BASIC AEG.CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit is precisely made to improve accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC, except KWA) M4/M16 Standard AEG series. The Hopup Chamber ME unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot. Its hopup chamber unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs. Also its equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore. More than that, the Hopup Chamber ME Pro unit is specially designed with BB Latching System to prevent dropping BBs after removing the magazine. The Latching System can be also manually opened to release BBs from inside hopup chamber by hand.***The Dual UV LED Boards and Module set and Single UV LED Board w/ Clear Cover and Module set are optional add-ons to glow BBs in the dark. Operating Voltage from 7VDC – 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)***The Empty Magazine Detection Sensor and Electronic Switch Controller are optional add-ons to stop Motor/HPA firing when the magazine is empty. (Sold separately)***Test results: FPS might be increased from 10FPS to 30FPS over stock setup. Please check your FPS!Includes:1 x CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit1 x Dual UV LED Boards and Module set2 x Strong Clear Vinyl Cover set1 x CNC Aluminum Standard-Hop Arm1 x CNC Aluminum R-Hop Arm1 x Silicone Rubber Standard-Hop Nub Damper1 x Silicone Rubber R-Hop Nub Damper1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub1 x CNC Brass Threaded Slot Pin1 x CNC Delrin Locking C-Clip1 x CNC Barrel Brass Spacer1 x Brass Spacer Holder Oring3 x Steel Compression SpringSpecificationOverall Length: 51mmOverall Height: 37.75mmHub Outer Diameter (to fit into Gear Box): min 11mm – max 11.5mmHub Outer Diameter (to fit into Outer Barrel): min 12mmHub Inner Diameter (to fit Nozzle): max 8.3mmFeeder Outer Diameter (to fit magazine): min 9.25mmFeeder Length (to fit magazine): max 6.25mmMaterial: Aluminum 6061FeaturesMachined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durabilityImproved accuracy and ensure consistent air seal for Tokyo Marui (include KRYTAC, except KWA) M4/M16 Standard AEG seriesPrecision rotary dial design for fine hopup adjustmentsRe-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shotRemovable Brass Threaded Slot Pin for setup and maintenanceAccepted the nozzle length from 21.00mm to 21.25mmFully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBsEquipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twistingEquipped with 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tightCompatible with any V2 gear boxes with 11mm or 11.5mm boreSpecially designed with BB Latching System to prevent dropping BBs after removing the magazineManually opened to release BBs from inside hopup chamber by handThe Dual UV LED Boards and Module set and Single UV LED Board w/ Clear Cover and Module set to glow BBs in the dark ready!Included the Dual UV LED Boards and Module set to glow BBs in the dark. Operating Voltage from 7VDC – 15VDC (2-4 cells LiPo, 6-13 cells NiCad)The Empty Magazine Detection Sensor to stop Motor/HPA firing ready!Includes1 x CNC Aluminum Hopup Chamber ME Sport (with BB Catching System) unit1 xDual UV LED Boards and Module set2 x Strong Clear Vinyl Cover set1 x CNC Aluminum Standard-Hop Arm1 x CNC Aluminum R-Hop Arm1 x Silicone Rubber Standard-Hop Nub Damper1 x Silicone Rubber R-Hop Nub Damper1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub1 x CNC Brass Threaded Slot Pin1 x CNC Delrin Locking C-Clip1 x CNC Barrel Brass Spacer1 x Brass Spacer Holder Oring3 x Steel Compression SpringSpecificationOverall Length: 51mmOverall Height: 37.75mmHub Outer Diameter (to fit into Gear Box): min 11mm – max 11.5mmHub Outer Diameter (to fit into Outer Barrel): min 12mmHub Inner Diameter (to fit Nozzle): max 8.3mmFeeder Outer Diameter (to fit magazine): min 9.25mmFeeder Length (to fit magazine): max 6.25mmMaterial: Aluminum 6061FeaturesMachined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durabilityImproved accuracy and ensure consistent air seal forTokyo Marui(includeKRYTACandKWA) M4/M16 Standard AEG seriesPrecision rotary dial design for fine hopup adjustmentsRe-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shotRemovable Brass Threaded Slot Pin for setup and maintenanceAccepted the nozzle length from 21.00mm to 21.25mmFully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBsEquipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twistingEquipped with 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tightCompatible with any V2 gear boxes with 11mm or 11.5mm boreSpecially designed with BB Catching System to prevent dropping BBs after removing the magazineIncluded theDual UV LED Boards and Module setto glow BBs in the dark. Operating Voltage from 7VDC – 15VDC (2-4 cells LiPo, 6-13 cells NiCad)The Empty Magazine Detection Sensor to stop Motor/HPA firing ready!WeightN/A gramsUsageCompatible with mostTokyo Marui(includeKRYTACandKWA) M4/M16 standard AEG version 2 gear boxRequiresWearing eye protection is recommendedUse proper tools for disassembly and reassembly the gear box with great care due to spring tensionBearing lubricant oil/grease is recommended for smooth operation
